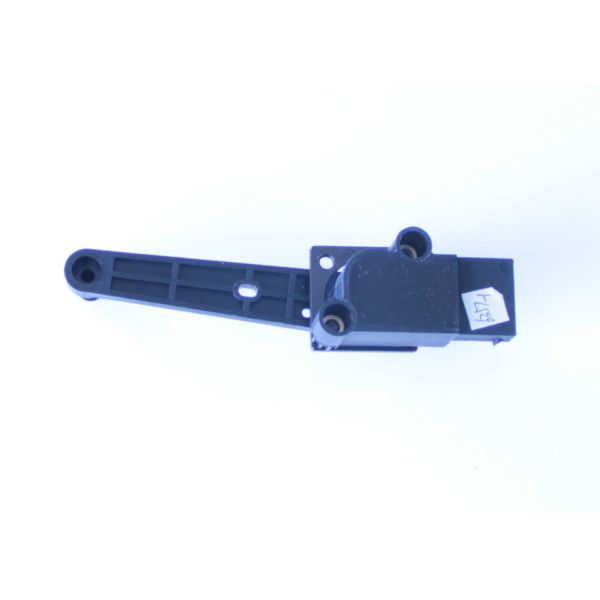

±1.5% High Accuracy Automotive Height Sensor with Voltage & PWM Output for Suspension Systems OEM

Model Number : TIA-P05S1501

Place of Origin : China

MOQ : 1000 pieces

Packaging Details : According to size and volume

Delivery Time : generally 2-3 months（Special orders can be processed separately)

Payment Terms : T/T

Supply Ability : 20,000 pieces per month

Certification : IATF16949

Product Name : Automotive Height Sensor

Model : TIA‑P05S1501

Measurement Parameter : Height & Angle Position Detection

Material : PBT+GF30

Operating Temperature : -40℃ to 125℃

Storage Temperature : -50℃ to 150℃

Voltage Supply : Voltage / PWM

Accuracy : ±1.5%

Application : Suspension Systems, Chassis Control Systems, Body Posture Systems

Contact Now

±1.5% High Accuracy Automotive Height Sensor with Voltage & PWM Output for Suspension Systems OEM

This automotive height sensor is used for accurate height and angle detection in suspension and chassis control systems. It provides dual voltage and PWM signal output for real‑time chassis feedback.

Core Specifications

Model	TIA-P05S1501
Material	PBT+GF30
Operating Temperature	-40℃ to 125℃
Storage Temperature	-50℃ to 150℃
Operating Voltage	5±0.5V
Operating Current	<10mA
Signal Output	Voltage/PWM
Core Function	Suspension Height (Angle Position) Monitoring
Application	Car/SUV/Commercial Vehicle Suspension Systems

±1.5% High Accuracy Automotive Height Sensor with Voltage & PWM Output for Suspension Systems OEM

Problem

Unstable height signals reduce suspension adjustment precision. Conventional sensors fail in high‑temperature and high‑vibration environments, with poor compatibility and short service life.

Cause

Weak material structure reduces vibration resistance. Single signal output limits ECU integration. Narrow temperature range restricts harsh environment use. High power consumption affects stability.

Solution

This sensor uses PBT+GF30 reinforced material for strong vibration resistance. It supports dual voltage & PWM output for wide ECU compatibility. With ±1.5% accuracy, -40℃~125℃ temperature range and <10mA low power consumption, it ensures stable long‑term performance.

How It Works

The sensor detects suspension height and angle changes, converts mechanical displacement into electrical signals, and outputs voltage or PWM signals to the ECU for real‑time suspension adjustment.

Applications

Suspension Systems
Chassis Control Systems
Body Posture Systems
OEM Automotive Suspension Assembly

Key Advantages

±1.5% High Accuracy Output → Ensures precise suspension height detection
Wide Temperature Range (-40℃ to 125℃) → Suitable for harsh automotive environments
Dual Signal Output (Voltage & PWM) → Compatible with multiple ECU systems
PBT+GF30 Reinforced Structure → Improves vibration resistance and durability
Low Power Consumption (<10mA) → Supports continuous system operation

How To Choose

For suspension systems: PWM output is recommended
For precision control: ±1.5% high accuracy is required
For harsh environments: PBT+GF30 material is preferred
For bulk projects: OEM customization is supported

FAQ

Q: What is the minimum order quantity?

A: The standard MOQ is 1000 pcs.

Q: Is this product suitable for individual purchase?

A: It is mainly for automotive OEM and bulk applications.

Q: Do you support customization?

A: Yes, we support signal, interface and parameter customization.
